开关量感烟感温 非编烟感温感探测器 继电器 常开烟温报警器FT143
市场价 : 0.0
产品详情
产品评论(0)

FT143火灾感烟感温探测器(别名,开关量烟感温感探测器,以下简称探测器)适用于商场、宾馆、商店 、仓库、银行、通信机房、等民用及工业场所的火灾预报警。探测器具有灵敏度高、稳定可靠、耗电小、美观耐用、使用方便等特点。

一. FT143火灾感烟感温探测器 性能:

供电电源: DC9V~DC28V

电    流:  静态电流 ≤200uA

报警电流 ≤45mA

工作温度: -10℃~+50℃

相对湿度: ≤95%RH(40℃±2℃)

输出形式: 声光报警/继电器无源触点(NO/NC可设置)输出。

二.FT143火灾感烟感温探测器 功能:

工作:正常情况下,探测器大约每隔6秒指示灯会闪亮一下。探测器自动检测周围环境中的烟雾浓度和温度,并根据使用环境状况进行灵敏度自动补偿。当烟雾浓度或温度接近报警值,探测器加快对温度或烟雾浓度趋势进行智能运算,同时报警指示灯开始闪亮。若运算结果达到或超过报警值,探测器开始声光报警,并启动继电器输出。当周围环境的温度或烟雾浓度降低到报警值以下时,探测器自动恢复正常工作状态。

输出:无源触点输出;触点容量24V/1A(220v/1a),可通过探测器内部的跳线,设置为常开或常闭触点输出。出厂时跳线默认设置触点为常开。

三 FT143火灾感烟感温探测器 中英对照

中英对照信息开关量烟感温感

Smoke and Heat Detector with relay output

型号JTY-GD-DG311N.O:FT143
供电电源 DC9V~DC28VOperating Voltage Range: 9 to 28VDC Volts Non-polarized
静态电流 静态电流 ≤200uAStandby Current: ≤200μA@ 24 VDC
报警电流≤35mAMaximumAlarm Current (LED on: ) ≤35mA@ 24 VDC
报警浓度

1.06±.26%FT

定温报警 : 57.2℃
差温报警 : 8.3℃/分钟

Smoke Alarm Sensitivity: 1.06±.26%FT

Temperature Alarm Sensitivity: 57°C (135°F) A1R

尺寸103x55mmsize 103x55 mm

四.安装:

在天花板上相距60mm的位置上打两个直径5mm的安装孔,用涨塞和螺钉固定探测器底座在天花板上。

注意:该产品不适宜在以下场所使用

正常情况下有烟滞留的场所;

有较大粉尘、水雾、蒸汽、油雾污染、腐蚀气体的场所;
相对湿度大于95%;
通风速度大于5M/秒。

正常情况下温度比较高或者变化大的的场所

undefined

undefined



英文介绍:

1. GENERAL DESCRIPTION

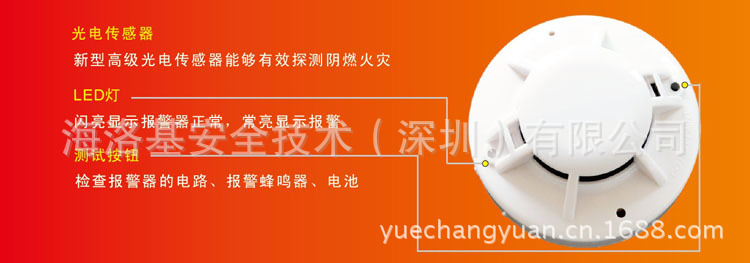

The detectors are photo-electronic detector uses a state of-the-artoptical sensing chamber. This detector is designed to provide open area protection and to be used with most security alarm control panel.
Two LEDs on each detector provide local 360° visible alarm indication. They flash every six seconds indicating that power is applied and the detector is working properly. The LEDs latch on in alarm. LEDs will be off when a trouble condition exists indicating that the detector sensitivity is outside the listed limit. The alarm can be reset only by a momentary power interruption.
The detector that initiated the alarm condition will have its red LED and relays latched until reset by panel.
Heat detector and smoke & heat detector combine a photo electronic sensing chamber and a temperature heat detector.
2. SPECIFICATIONS
Operating Voltage Range: 9 to 28 VDC Volts Non-polarized
Standby Current: ≤200μA
Maximum Alarm Current (LED on): ≤45mA
Alarm Relay Contact Ratings: 2A@ 24V DC
Operating Humidity Range: ≤95%RH(40°C±2°C) Relative Humidity, Non-condensing
Smoke Alarm Sensitivity: 1.06±.26%FT
Temperature Alarm Sensitivity: 57°C (135°F) A1R (only for with heat sensor)
Height: 55 mm installed in Base
Diameter: 103 mm
WARNING
TO PREVENT DETECTOR CONTAMINATION AND SUBSEQUENT WARRANTY CANCELLATION, THE SMOKE
DETECTOR MUST REMAIN COVERED UNTIL THE AREA IS CLEAN AND DUST FREE.
3. INSTALLATION
NOTE: All wiring must conform to applicable local codes, ordinances, and regulations.
INSTALL THE DETECTOR BASE
1. Open area smoke or heat detectors are intended for mounting on a ceiling or a wall in accordance with the fire standard in your country.
2. Attach mounting base to ceiling or wall. The base of the detector can be mounted directly onto an electrical junction box such as an octagonal (75mm, 90mm or100mm), a round (75mm), or a square (100mm) box without using any type of mechanical adapter.

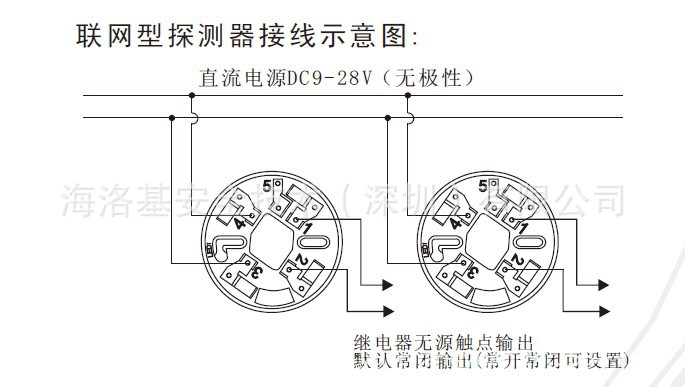

3. Position all wires flat against terminals, and fasten the wires on the terminals, See Figure 1.
4. Terminals function description:
Terminal 1: Relay Output -COM
Terminal 2: Relay Output – NO/NC (default NO)
Terminal 3: DC Power –
Terminal 4: DC Power +
