深圳市众安科电子有限公司

产品详情

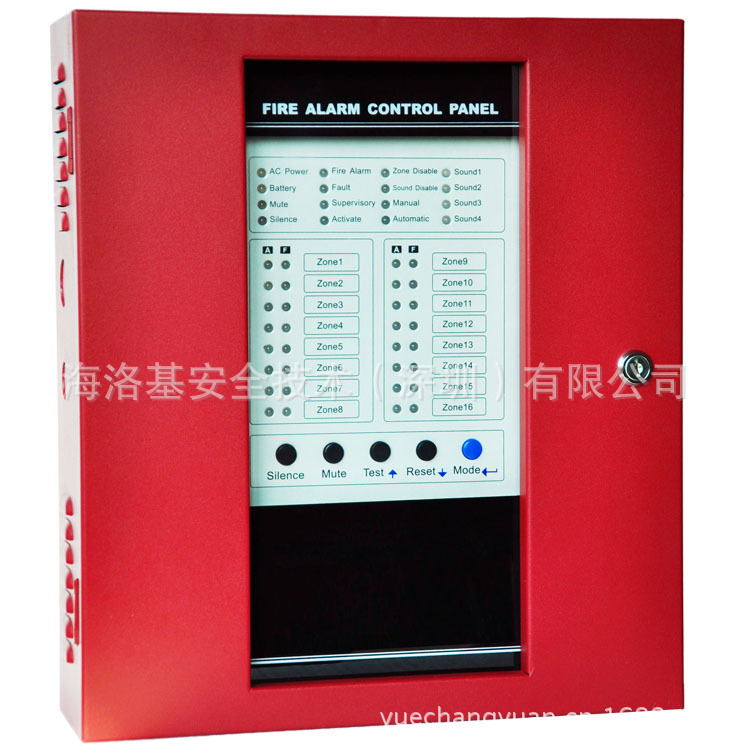

CK1016多线消防报警主机 Conventional Fire Alarm Control Panel
市场价 : 0.0
产品详情
产品评论(0)
红色版传统16回路多线制火灾报警控制器,配接任何2线烟感(YT102,YT102C等)温感
概述:

传统16回路火灾报警控制面板
主要规格/功能参数
16回路报警显示,4路声光输出,
每个回路可接 两线烟雾探测器和 任何常开触点的设备
供电电压 AC110-270V  输出电压24V。
需要备电 :两节 7AH/12V
故障显示 测试按钮 消音按钮 复位按钮

The ck1000 is a 4-zone to 16-zone FACP (Fire Alarm Control Panel), which uses conventional input devices.  The panel accepts water flow devices, two-wire smoke detectors, four-wire smoke detectors, pull stations and other normally-open contact devices. Outputs include four Notification Appliance Circuits (NAC, SOUND1-4), three standard Form-A relays (alarm, trouble and supervisory) and an EIA-485 port to interface with remote annunciators and optional remote relay modules. The FACP is field programmable via the panel keypad.  It also supervises all wiring, AC voltage and battery level.

This series of panels are basically the same in application and operation, their differences are shown in Table 1-1. it will be described as the example in the following sections.

Table 1-1

FACP

Number of Detection Zones

Number of Sounder Outputs

Output Delay Settings

CK1004

4

1

N/A

CK1008

8

2

N/A

CK1016

16

4

N/A

General

Conventional Fire Alarm Control Panel with four Zones

Key Specifications/Special Features


16 Style B (Class B) Initiating Device Circuits (IDCs).
All zones accept two-wire smoke detectors and any normally-open contact devices.
One built-in, Style Y (Class B) Notification Appliance (Signal) Circuits (NACs).
Alarm, Trouble and Supervisory, Form-C relays standard.
24-volt operation.
Resettable four-wire smoke detector power @ 500 mA.
Non-resettable power @ 500 mA.
One-man walk-test programmable for silent or audible test.
Disable/Enable control per IDC.
Reverse polarity protection.
